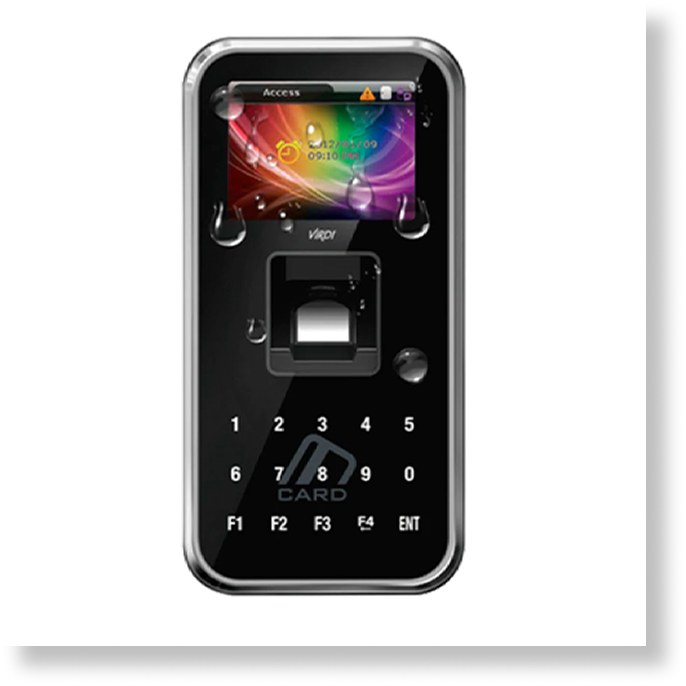

Virdi AC-5000PLUS IK

AC5000Plus IK is an outdoor fingerprint recognition terminal with a Vandal proof structure rated IK09.

Categories: Biometric, Virdi AC Series

Specifications

Model

AC-5000PLUS IK
Authentication Method

Fingerprint/Card
Dust/ Water Resistance

IP65/IK09
Max Users

20,000
Templates

40,000(1:1) / 30,000(1:N)
Logs

64,000
images

X
with server

TCP/IP
other

X
Wireless LAN(Wi-Fi)

X
Wiegand OUT

O
RS232

O
RS485

OSDP
Wiegand IN

O
LCD

2.8″Color

Backlight

O
125khz-EM

O
HID Prox

O
HID iclass

O
13.56MHz Smart Card

O
Embedded Camera

X
Keypad

O
Function keys

10
Door Phone

X
FP Sensor (Platen Area)

16 X 20 mm
Resolution

500 dpi
Dimension(W) X (H) X (D) mm

88 X 175 X 45.8
FRR /FAR

0.1% /0.0001%
Operating Temperature

-20 ~ 60℃
